Parameters

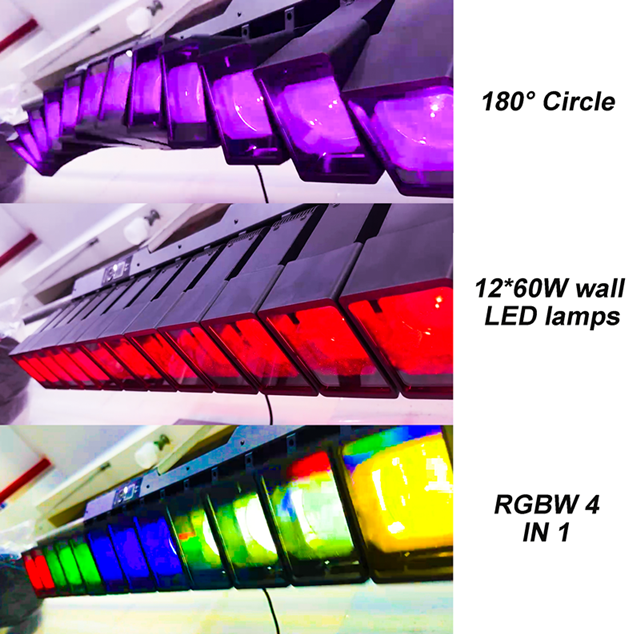

Power: 12 * 60W (800W)
light source: 12leds 4in1x 60 watt ,strip: (5-in-1 auxiliary light: 288 positive white, warm white/432 red, green, blue)
Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.
Channel: CH20.CH169A.CH169B.CH53.CH101.CH155.CH179
Dimming: 32-bit 0~100% linear dimming
Features: Single swing+staining+beam
Working temperature: -30 ° C~50 ° C
Strobe frequency: 1-30HZ
Appearance: Metal, Black
Connection method: DMX512 input/output/power input/output.
IP rating: IP20
zoom angle:3-35degree

Size: 102*21*30cm
Weight: 27.85KG,PACK SIZE:111*28*39 cm G.W.:30KG,flycase pack(2pcs):122X55X45CM/GW.:82kg

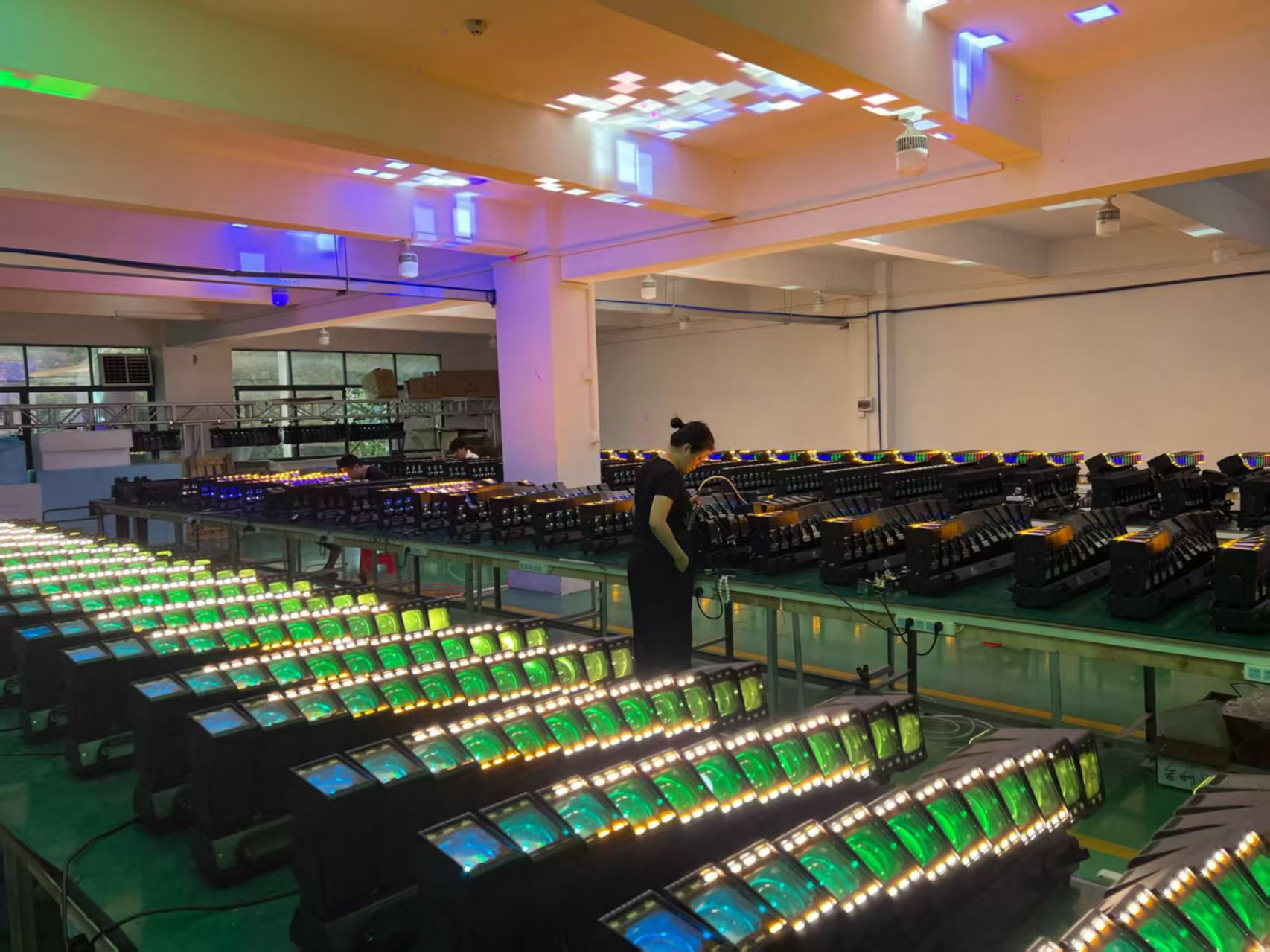

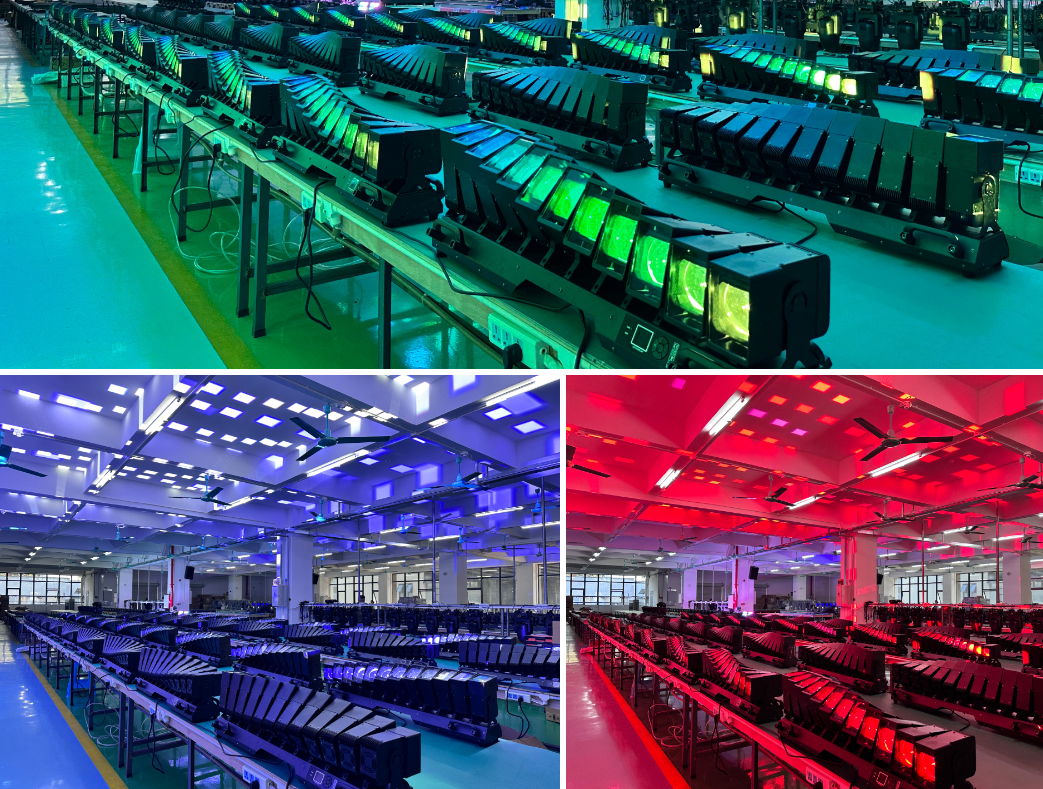

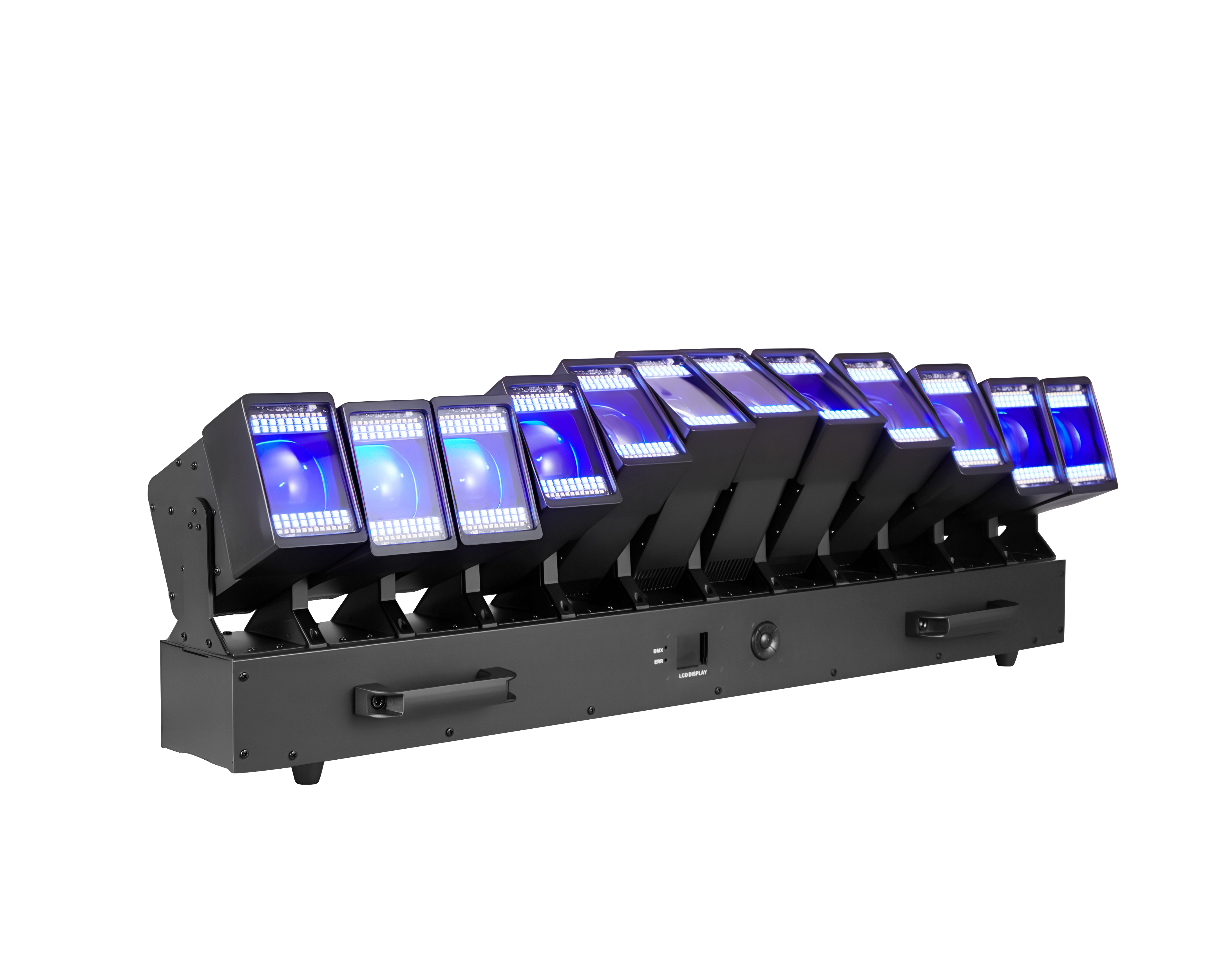

Produce line

Perfect Effect
