Parameters

Total power: 800W

Focus: linear electric focus

Light adjustment: the light is adjusted smoothly without flicker

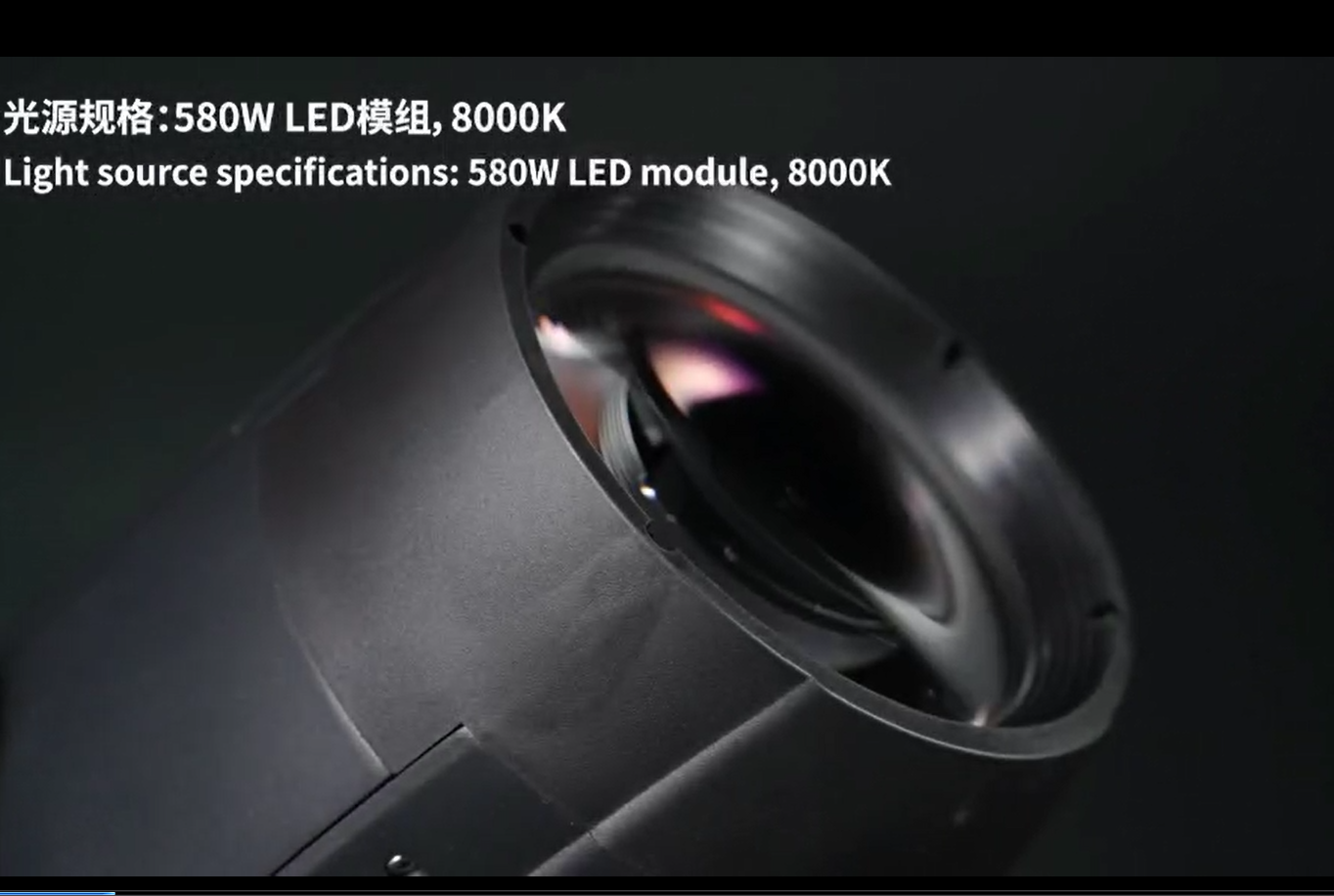

Light source specification: 580W LED module, 8000K,LED life: 20,000 hours,

Waterproof Protection class: IP66

Flicker: independent flicker, adjustable from 0.5 to 20 times/s

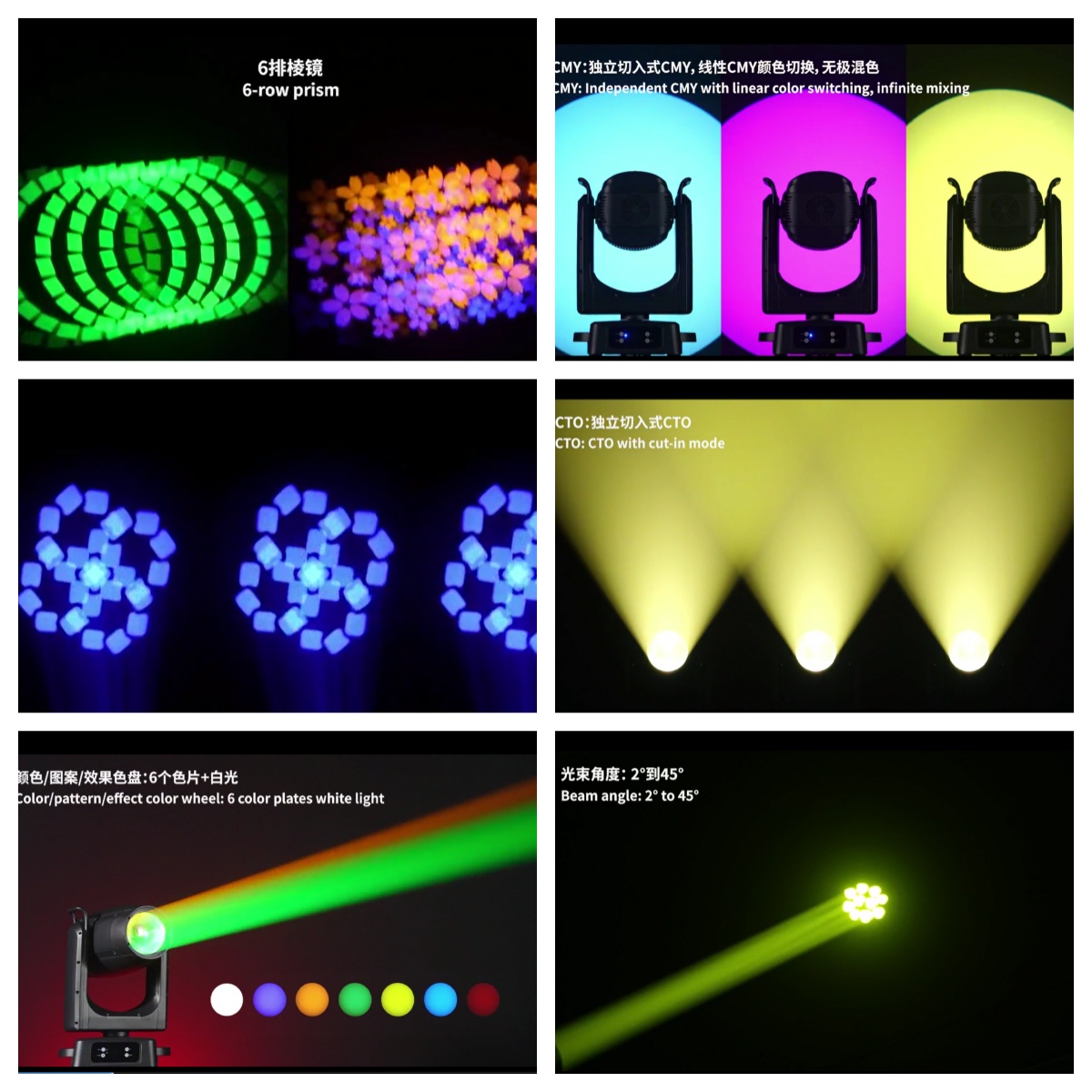

Color/pattern/Effect palette: 6 color chips + white light

CTO: Independent entry CTO

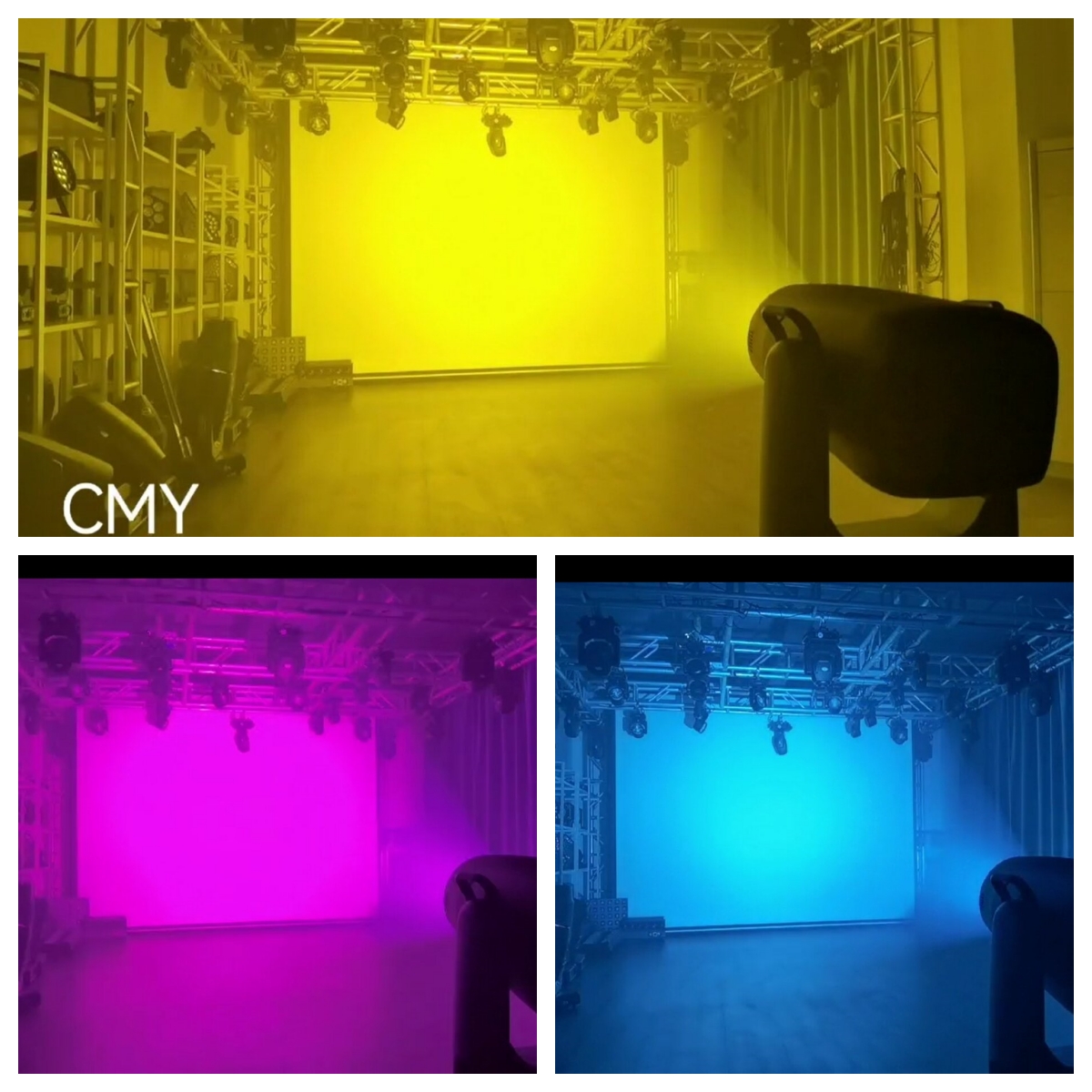

CMY: Independent cut CMY, linear CMY color switching, no infinite mixing

Prism: 6 rows of prism and 4 prism, can rotate in both directions, with positioning function. Prism can be overlapped.

Zoom Beam Angle: 2.5° to 42 degrees

8 Fixed gobos:can be shaken in both directions, animation, water effect

7rotating gobos:+ white circle

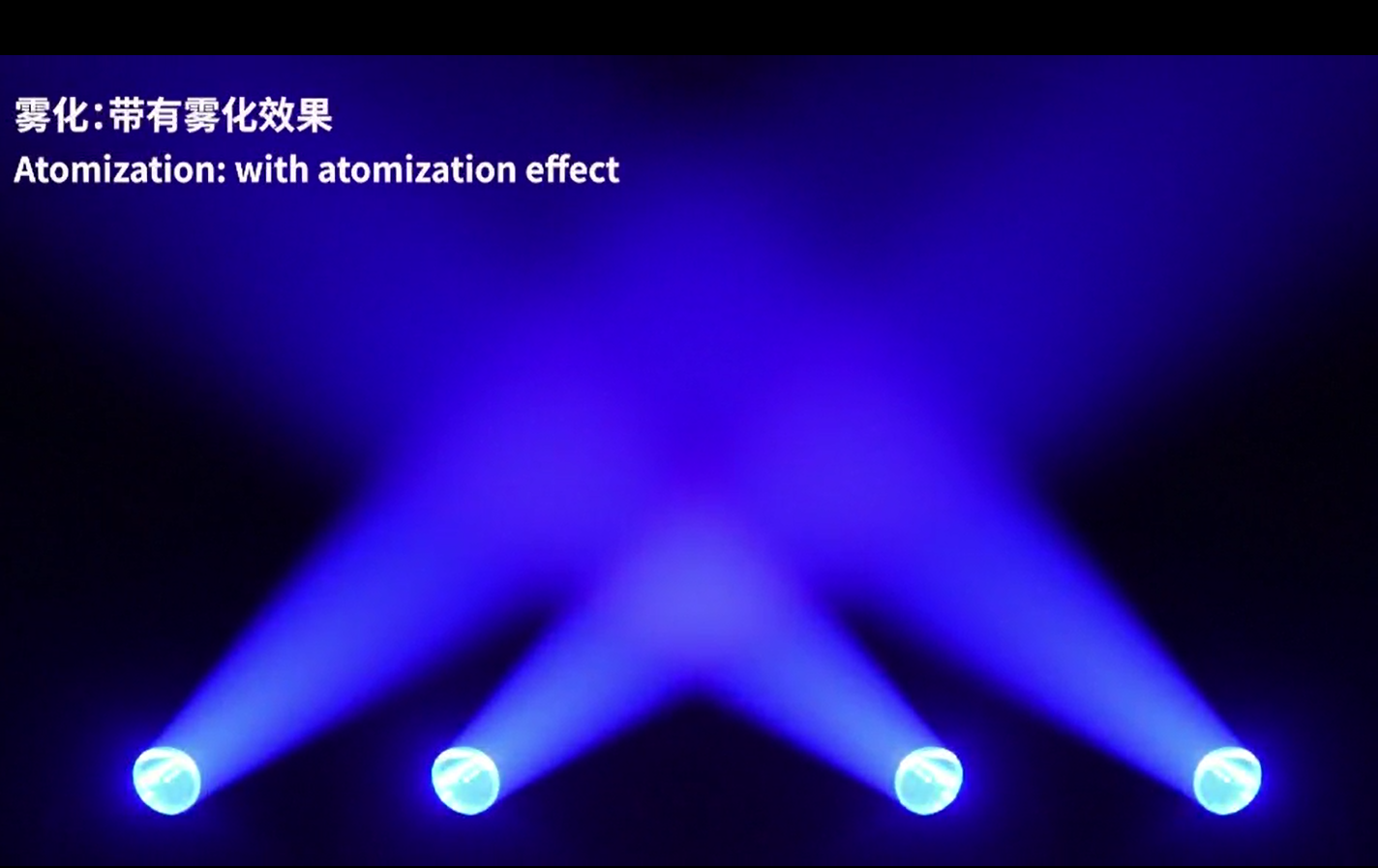

Atomization: with atomization effect

Control mode: DMX 512, self-propelled, master-slave machine

Rotation Angle: 540 degrees on the X axis

The Y axis can be automatically corrected for 275 degrees

Channels: 25 channels

Heat dissipation system: use super large high-quality copper tube fully enclosed heat dissipation system, gyroscope automatically adjust the heat dissipation system, effectively control the temperature of the lamp

Dehumidification system: intelligent dehumidification and dehumidification system, effectively guarantee the life of lamps

Positioning technology: magnetic coding positioning system is adopted, using magnetic devices instead of the traditional Hall positioning system, with higher accuracy and reliable performance

Material: high-end shell made of international die-cast aluminum + aviation die-cast magnesium alloy

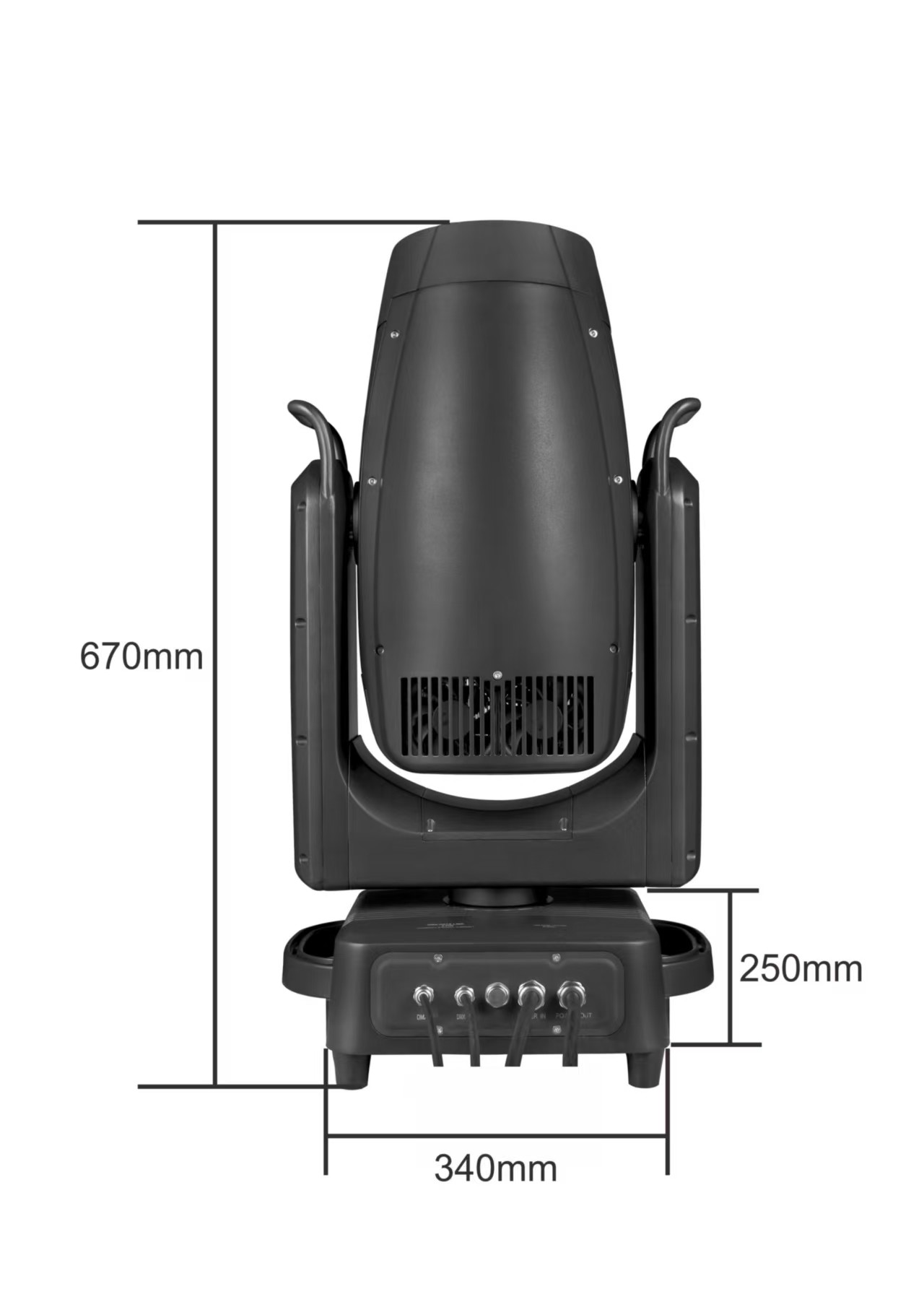

Light body size: 36*27*68mm

Net weight: 22.1KG

Details & Features

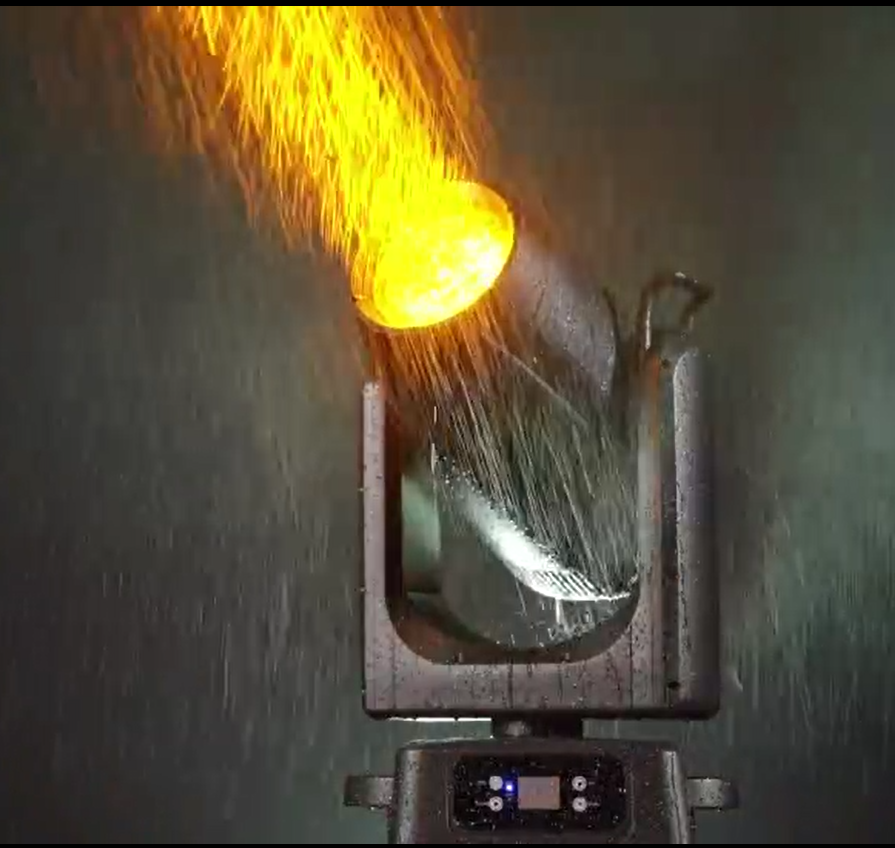

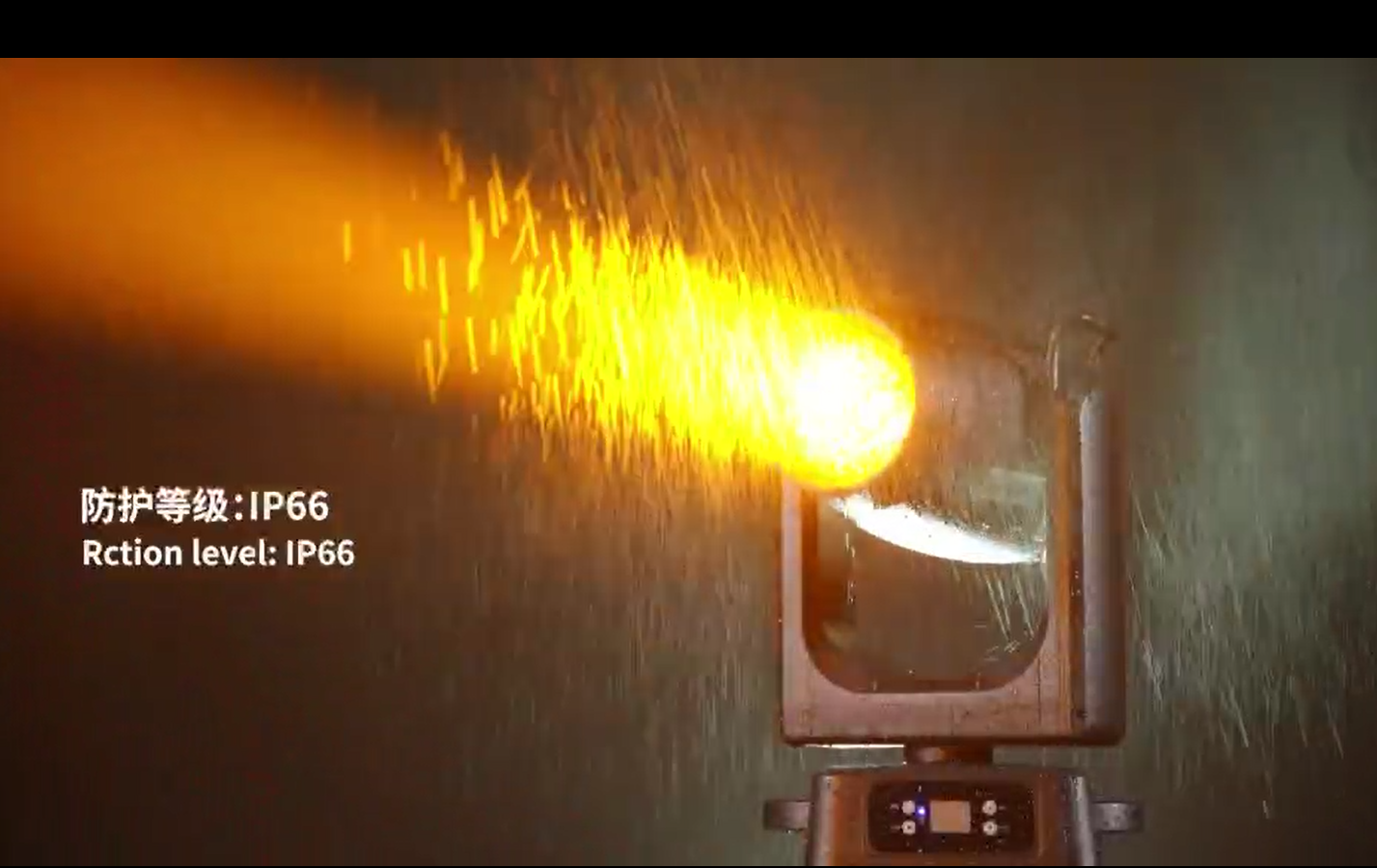

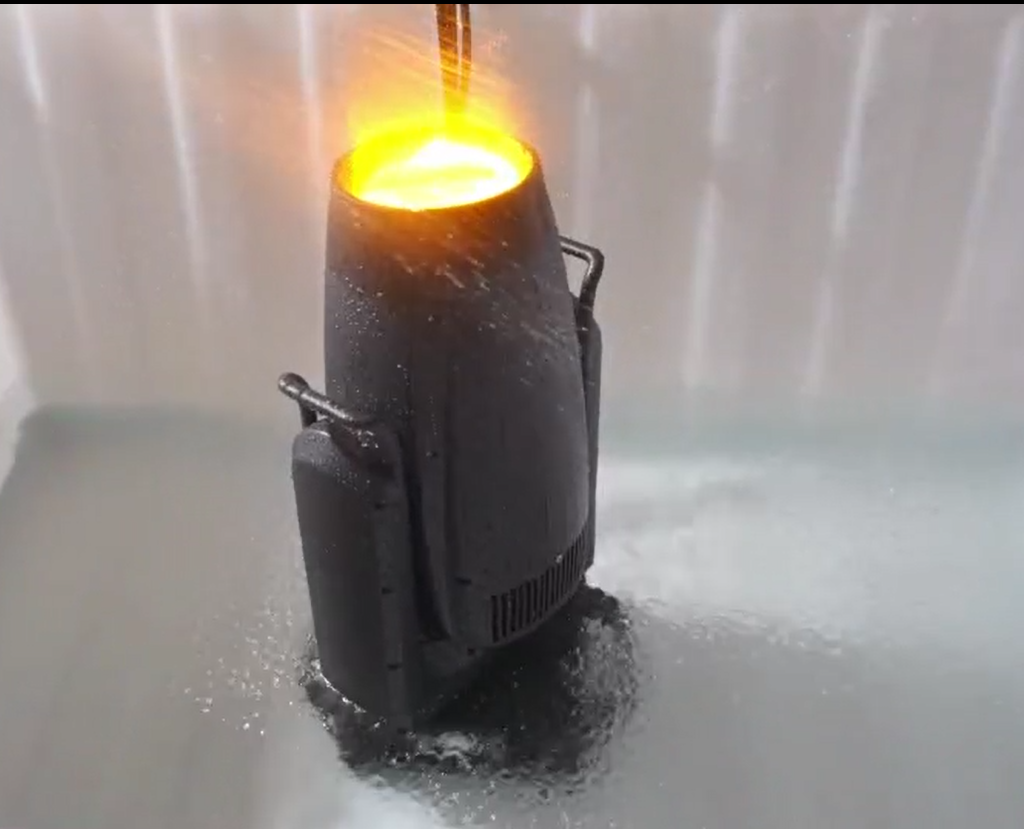

WATERPROOF:IP66

Perfect Effect

DOWNLOAD

HQ-ML600F

User Manual
