Parameters

Laser power:

6W [red: 1.5w 638nm; green: 1.5w 520nm; blue: 3w 445nm]

Cooling method: integrated aluminum radiator, the whole machine is cold and cooling down

Control signal mode: TTL/Analog automatic switching modulation voltage: ≦ 100K

Laser divergence angle: <1.2mrad (full -angle)

Laser spot size: 5*6.2mm at the size of the outlet

Vibration mirror: AT 30K/35k/40KPPS High-quality medium membrane reflectance> 99% @45 ° incident (cover wavelength: 400nm-680mm)

Scan angle: maximum 60 °

Laser service life: ≥10000 hours (test results in the constant temperature environment)

Laser level: Class IV

Control mode:SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels, master/slave mode, ILDA software control

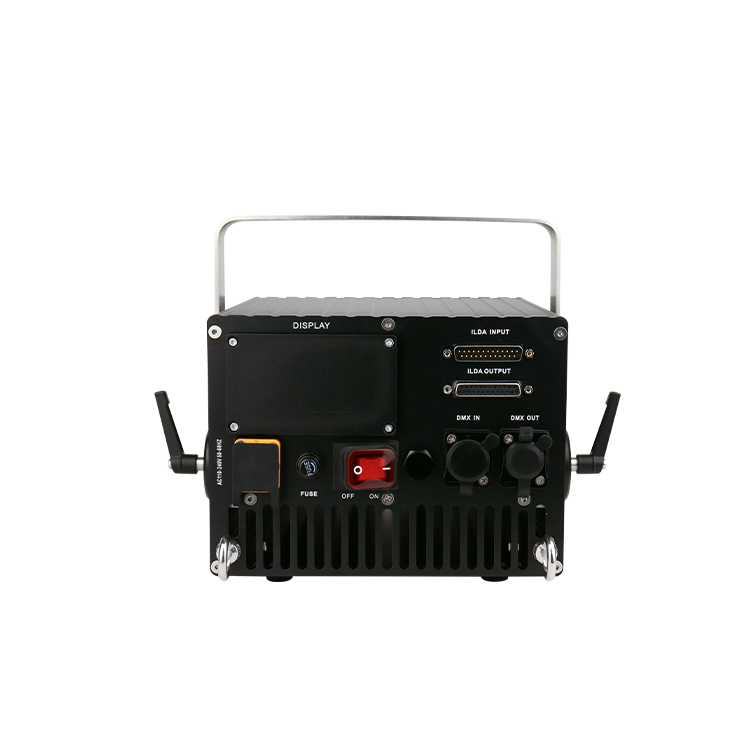

Back control: AT-S2 digital display, 3 stitches 512 in/out, DB25 in/out, power input, fuse

Work temperature: -10C-45 ° C

Voltage: 100-250V

Rated power: 70W

Application: Outdoor performance, outdoor advertising, outdoor scenic spots park, etc.

Size: 23 * 27 * 20.5cm/33.5cm (L* W * H) net weight: 7.5kgs
Carton packaging: 42*35*29cm Weight: 8.5kgs

Waterproof IP65

Perfect Effect
